Qt Creator: Remote Linux Device Kit is unsuited for this Project

[Haubna]

Hi All,

I am using the Qt Creator IDE on Windows and i am trying to build and run my program on an Remote Linux Device (Linux Mint on a PC).

I've established a SSH connection with my linux device and created a new Kit.

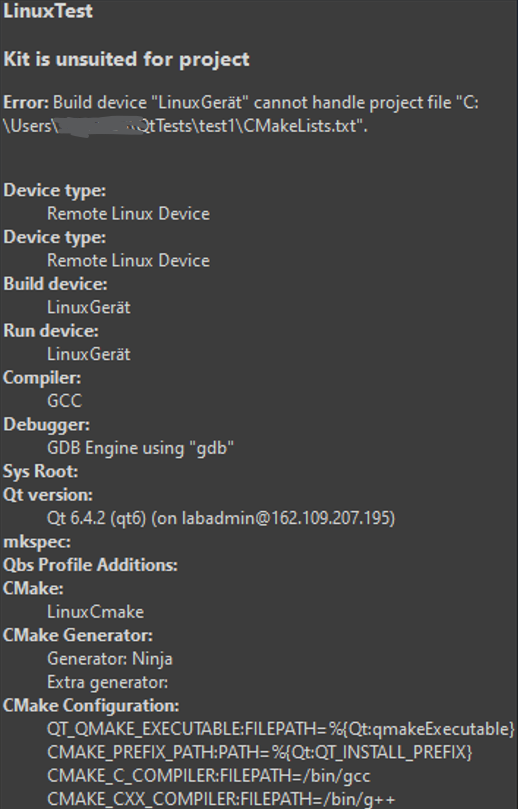

But when I try to select the kit it says: " Kit is unsuited for Project"
"Error: "Build device ... cannot handle .........\CMakeLists.txt"

I wrote down a step by step tutorial how to setup a Linux Remote Device which I strictly followed.
Here you can find all the Infos:

https://doc.qt.io/qtcreator/creator-how-to-build-on-remote-linux.html





1. Install necessary libs to your Linux Device

-you need several libs for Linux:
	- gcc/g++ (or your compiler of choice)
	- cmake
	- qt6
	- ssh
	- ninja
	- rsync
- full command for ubuntu/Debian:	sudo apt update && sudo apt install -y qt6-base-dev qt6-base-dev-tools qt6-tools-dev cmake openssh-client openssh-server rsync ninja-build build-essential





2. Establish a SSH connection between you and your Linux device

- configure an ssh key in order to login your Linux device without Passwort
	- create ssh key on windows pc: ssh-keygen -t ed25519
	- press enter two time for default values
	- show public key: type $env:USERPROFILE\.ssh\id_ed25519.pub
	- copy the full line
	- login your Linux device: ssh 'linuxUsername'@'linuxIpAdress' (e.g.: ssh labadmin@162.109.207.195)

	- on your Linux device:
	mkdir -p ~/.ssh
	chmod 700 ~/.ssh
	nano ~/.ssh/authorized_keys
	``

	- set rights:
	chmod 600 ~/.ssh/authorized_keys

	- test connection on windows: ssh 'linuxUsername'@'linuxIpAdress'  (e.g. ssh labadmin@162.109.207.195)
	- if you dont need to type in a password it worked


- in qt creator go to preferences -> devices -> Add -> Add Remote Linux Device
	- name: 		e.g. 'myLinuxDevice'
	- ip adress: 		ip adress from your Linux device,
	- username: 		username from your Linux device,
	- ssh port: 		ssh port you use (default: 22)
- click 'Test' to check your connection, if its green then its okay





3. Reference the libs for your Kit

- Go to Preferences -> CMake -> Tools, and then select Add
- In Path, select Remote in the dropdown menu in Browse (Choose on macOS) to add the path to the CMake executable on the remote Linux device
- Go to Preferences -> Kits -> Qt Versions, and then select and hold Shift and select the Add button to add the Qt version on the remote Linux device
- Go to Preferences -> Kits -> Compilers, and then select the compiler type in Add
- In C compiler path, select Remote in the dropdown menu in Browse (Choose on macOS) to add the path to the compiler on the remote Linux device





4. Adding a Kit

- go to Preferences -> Kits -> Add
	- Build Device:		Remote Linux Device		Device: 	'myLinuxDevice'
	- Run Device:		Remote Linux Device		Device: 	'myLinuxDevice'
	- Compiler:		GCC(or any compiler)
	- Qt Version:		the Qt version you added
	- CMake Tool:		the CMake version you added





5. Activate a Kit

- open a project for an application you want to develop for the device
- select on the side Projects, then select the kit that you want to use
- go to Run Settings to specify run settings. Usually, you can use the default settings

-When you run the project, Qt Creator deploys the application as specified by Deploy Settings.

[ziller]

To build the project on the build device you need to open the project from the build device, not a local project. In contrast to Docker support, Qt Creator doesn't do any magic mapping there.

You can open projects from the device with File > Open From Device, the device is accessible with the "f" (file system) filter in Locator (and starting with QtC 19 the device root is also accessible in File System view).
