Trouble trying to use ASAN

JulsPower

so it does work within MSVC

JulsPower

Hi
I have changed the lib directory in the pro file to
D:\Application\Microsoft Visual Studio\18\Community\VC\Tools\Llvm\x64\lib\clang\20\lib\windows
still the same error

then I delete a couple of path from the runtime path

then I had error about the asan lib not being found
I copied it to the running directory
now the program start normally if I press run (not debug)
but
its not catching error it should as my main look like this:`

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    MainWindow w;
    w.show();

    QTimer t;
    t.setInterval(0);
    t.setSingleShot(true);
    {
        QByteArray ba = QByteArrayLiteral("Test byte array literal");
        t.connect(&t, &QTimer::timeout, &t, [d=ba.data()](){
            qDebug() << d;
        });
    }
    t.start();

    int *p = new int[2];
    p[5] = 42; // ASan doit détecter ça
    delete[] p;

    return a.exec();
}

and the output of the application is: Test byte array literal
and the QMainwindow open

any idea?

JulsPower

I also pointed the the llvm lib path I builded and it compiles, then add to path where is the dll of the llvm I built, does the same thing it run but does't detect any problem....

KH-219Design

Interesting progress!

What if (in the case where ASan lib is side-by-side in directory and you press "run") you replace this:

    int *p = new int[2];
    p[5] = 42; // ASan doit détecter ça
    delete[] p;

with this (a little more like in the Visual Studio case):

    int *p = new int[2];
    p[100] = 42; // ASan doit détecter ça
    delete[] p;

Sometimes there are "slightly less egregious" violations that ASan can miss.

You could also try:

    int i = 23;
    i <<= 32;
    (void) i;

    int ii = INT_MIN;
    int j = -ii;
    (void) j;

    std::vector<bool> bla;
    bla.push_back( false );
    // just using a "barely wrong" index isn't always enough. use a flagrant one:
    fprintf( stderr, "%d\n", static_cast<int>( bla[ 64 ] ) );

    std::unique_ptr<int> test = std::make_unique<int>( 1 );
    auto newtest = std::move( test );
    fprintf( stderr, "%d\n", *test );

Christian Ehrlicher

I'm not sure if asan on windows should catch this - it's limited to the linux version: https://learn.microsoft.com/en-us/cpp/sanitizers/asan

JulsPower

changing 5 to 100 hasn't change anything

then I tried the other example you gave I had got a asan crash

=================================================================
==2212==ERROR: AddressSanitizer: heap-buffer-overflow on address 0x12058cfa3f78 at pc 0x7ff69c1b24b7 bp 0x00449ed1f4a0 sp 0x00449ed1f4e8
READ of size 4 at 0x12058cfa3f78 thread T0
    #0 0x7ff69c1b24b6  (D:\Doc\Test Sanitize\build\release\Test_Sanitize.exe+0x1400024b6)
    #1 0x7ff69c1b57bf  (D:\Doc\Test Sanitize\build\release\Test_Sanitize.exe+0x1400057bf)
    #2 0x7ff69c1b5649  (D:\Doc\Test Sanitize\build\release\Test_Sanitize.exe+0x140005649)
    #3 0x7ffc29e67373  (C:\Windows\System32\KERNEL32.DLL+0x180017373)
    #4 0x7ffc2bb9cc90  (C:\Windows\SYSTEM32\ntdll.dll+0x18004cc90)

0x12058cfa3f78 is located 4 bytes after 4-byte region [0x12058cfa3f70,0x12058cfa3f74)
allocated by thread T0 here:
    #0 0x7ffb900ba60d  (D:\Doc\Test Sanitize\clang_rt.asan_dynamic-x86_64.dll+0x18005a60d)
    #1 0x7ff69c1b36c0  (D:\Doc\Test Sanitize\build\release\Test_Sanitize.exe+0x1400036c0)
    #2 0x7ff69c1b3011  (D:\Doc\Test Sanitize\build\release\Test_Sanitize.exe+0x140003011)
    #3 0x7ff69c1b23c4  (D:\Doc\Test Sanitize\build\release\Test_Sanitize.exe+0x1400023c4)
    #4 0x7ff69c1b57bf  (D:\Doc\Test Sanitize\build\release\Test_Sanitize.exe+0x1400057bf)
    #5 0x7ff69c1b5649  (D:\Doc\Test Sanitize\build\release\Test_Sanitize.exe+0x140005649)
    #6 0x7ffc29e67373  (C:\Windows\System32\KERNEL32.DLL+0x180017373)
    #7 0x7ffc2bb9cc90  (C:\Windows\SYSTEM32\ntdll.dll+0x18004cc90)

SUMMARY: AddressSanitizer: heap-buffer-overflow (D:\Doc\Test Sanitize\build\release\Test_Sanitize.exe+0x1400024b6)
Shadow bytes around the buggy address:
  0x12058cfa3c80: fa fa fd fa fa fa 00 00 fa fa 00 fa fa fa 00 00
  0x12058cfa3d00: fa fa 00 00 fa fa 00 00 fa fa 00 00 fa fa 00 00
  0x12058cfa3d80: fa fa fd fd fa fa 00 00 fa fa fd fd fa fa 00 fa
  0x12058cfa3e00: fa fa 00 00 fa fa 00 00 fa fa 00 00 fa fa 00 00
  0x12058cfa3e80: fa fa 00 00 fa fa 00 fa fa fa 00 00 fa fa 00 00
=>0x12058cfa3f00: fa fa fd fa fa fa fd fa fa fa 00 00 fa fa 04[fa]
  0x12058cfa3f80: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x12058cfa4000: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x12058cfa4080: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x12058cfa4100: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x12058cfa4180: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
Shadow byte legend (one shadow byte represents 8 application bytes):
  Addressable:           00
  Partially addressable: 01 02 03 04 05 06 07
  Heap left redzone:       fa
  Freed heap region:       fd
  Stack left redzone:      f1
  Stack mid redzone:       f2
  Stack right redzone:     f3
  Stack after return:      f5
  Stack use after scope:   f8
  Global redzone:          f9
  Global init order:       f6
  Poisoned by user:        f7
  Container overflow:      fc
  Array cookie:            ac
  Intra object redzone:    bb
  ASan internal:           fe
  Left alloca redzone:     ca
  Right alloca redzone:    cb
==2212==ABORTING

Not super helpfull asan on windows...
I have to try under linux
guys got any good guide on how to setup it?

KH-219Design

Not super helpful

The crash stacks that you shared look essentially identical to what I expect ASan to do (based on my having used it many times on Linux).

This asan crash output is what ASan does. It is the mechanism by which ASan alerts you to the issues.

Maybe you were expecting a different "front end" (GUI perhaps)? Something more like popups or like breaking in the debugger? (If you overcome whatever is preventing the run-it-inside-the-debugger option, that might help.)

Actually, looking at your output again, I see that symbols seem to be missing.

I would expect to see a more human readable crash stack (though still a "wall of text"). I would expect to see function names (and possibly source file and line number) in the crash output. But I don't think that is automatically an msvc versus Linux thing. On either OS it is possible to end up without debug symbols.

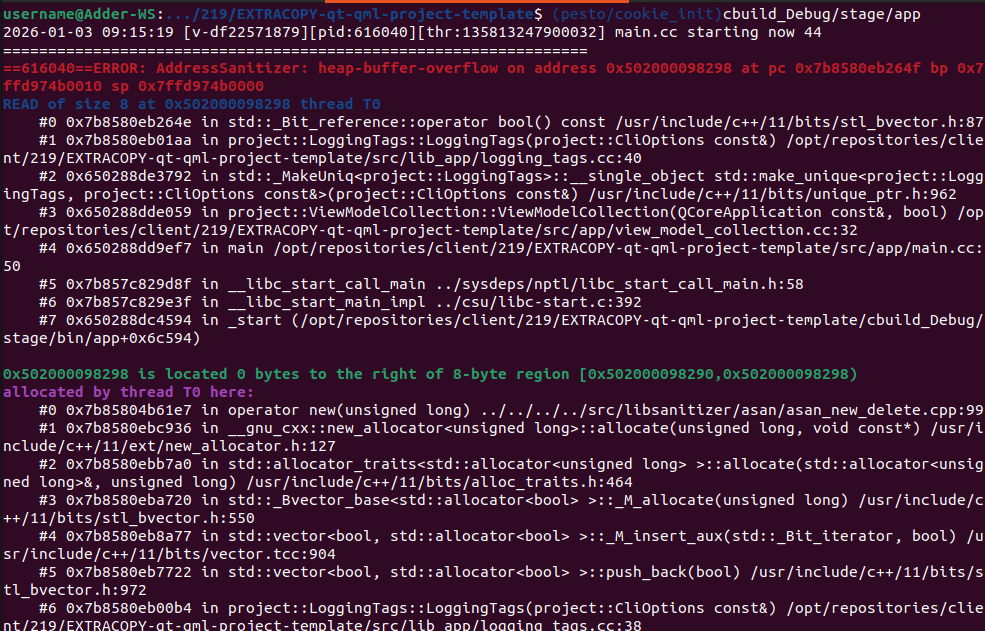

This is what I see (on Linux) when debug symbols are present:

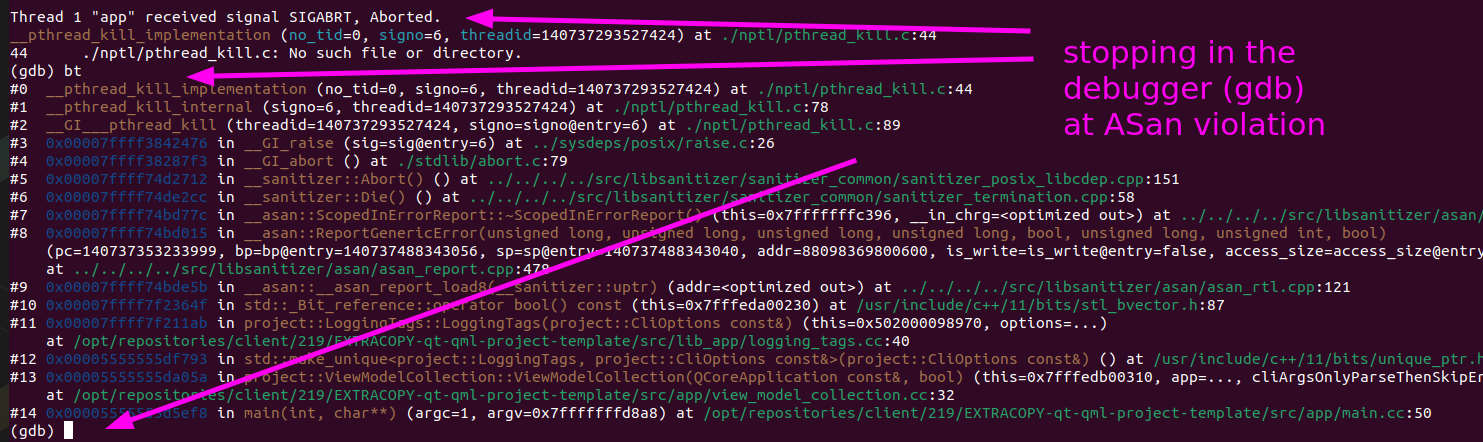

Even better (for some workflows), if I run it in the debugger, I can break at the crash and I can examine the stack in the debugger. There is an environment variable we need, though:

(gdb) set env ASAN_OPTIONS=abort_on_error=1
(gdb) run

As much as I heavily prefer working on Linux most days, I still don't think that anything discussed so far is necessarily OS specific.

JulsPower

I said not very usefull as no source or line were pointed. I expected terminal output like this.
ill let you know if I can use it correctly.

might also try under linux since the code I want to test is easily portable

JulsPower

I have added: CONFIG += force_debug_info
to my pro file now the output is:

=================================================================
==25448==ERROR: AddressSanitizer: heap-buffer-overflow on address 0x1201ed2a3f78 at pc 0x7ff6022e24b7 bp 0x0087e878f4e0 sp 0x0087e878f528
READ of size 4 at 0x1201ed2a3f78 thread T0
    #0 0x7ff6022e24b6 in std::_Vb_reference<std::_Wrap_alloc<std::allocator<unsigned int> > >::operator bool d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\vector:2499
    #1 0x7ff6022e24b6 in main D:\Doc\Test Sanitize\Test_Sanitize\main.cpp:38
    #2 0x7ff6022e57bf in qtEntryPoint C:\Users\qt\work\qt\qtbase\src\entrypoint\qtentrypoint_win.cpp:45
    #3 0x7ff6022e5649 in invoke_main D:\a\_work\1\s\src\vctools\crt\vcstartup\src\startup\exe_common.inl:102
    #4 0x7ff6022e5649 in __scrt_common_main_seh D:\a\_work\1\s\src\vctools\crt\vcstartup\src\startup\exe_common.inl:288
    #5 0x7ffc29e67373  (C:\Windows\System32\KERNEL32.DLL+0x180017373)
    #6 0x7ffc2bb9cc90  (C:\Windows\SYSTEM32\ntdll.dll+0x18004cc90)

0x1201ed2a3f78 is located 4 bytes after 4-byte region [0x1201ed2a3f70,0x1201ed2a3f74)
allocated by thread T0 here:
    #0 0x7ffb7d5da60d  (D:\Doc\Test Sanitize\clang_rt.asan_dynamic-x86_64.dll+0x18005a60d)
    #1 0x7ff6022e36c0 in std::_Default_allocate_traits::_Allocate d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\xmemory:140
    #2 0x7ff6022e36c0 in std::_Allocate d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\xmemory:260
    #3 0x7ff6022e36c0 in std::allocator<unsigned int>::allocate d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\xmemory:994
    #4 0x7ff6022e36c0 in std::_Allocate_at_least_helper d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\xmemory:2323
    #5 0x7ff6022e36c0 in std::vector<unsigned int, class std::allocator<unsigned int>>::_Resize_reallocate<unsigned int>(unsigned __int64, unsigned int const &) d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\vector:1565
    #6 0x7ff6022e3011 in std::vector<unsigned int,std::allocator<unsigned int> >::_Resize d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\vector:1608
    #7 0x7ff6022e3011 in std::vector<unsigned int,std::allocator<unsigned int> >::resize d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\vector:1635
    #8 0x7ff6022e3011 in std::vector<bool, class std::allocator<bool>>::_Insert_x(class std::_Vb_const_iterator<struct std::_Wrap_alloc<class std::allocator<unsigned int>>>, unsigned __int64) d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\vector:3539
    #9 0x7ff6022e23c4 in std::vector<bool,std::allocator<bool> >::_Insert_n d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\vector:3517
    #10 0x7ff6022e23c4 in std::vector<bool,std::allocator<bool> >::insert d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\vector:3378
    #11 0x7ff6022e23c4 in std::vector<bool,std::allocator<bool> >::push_back d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\vector:3286
    #12 0x7ff6022e23c4 in main D:\Doc\Test Sanitize\Test_Sanitize\main.cpp:36
    #13 0x7ff6022e57bf in qtEntryPoint C:\Users\qt\work\qt\qtbase\src\entrypoint\qtentrypoint_win.cpp:45
    #14 0x7ff6022e5649 in invoke_main D:\a\_work\1\s\src\vctools\crt\vcstartup\src\startup\exe_common.inl:102
    #15 0x7ff6022e5649 in __scrt_common_main_seh D:\a\_work\1\s\src\vctools\crt\vcstartup\src\startup\exe_common.inl:288
    #16 0x7ffc29e67373  (C:\Windows\System32\KERNEL32.DLL+0x180017373)
    #17 0x7ffc2bb9cc90  (C:\Windows\SYSTEM32\ntdll.dll+0x18004cc90)

SUMMARY: AddressSanitizer: heap-buffer-overflow d:\Application\Microsoft Visual Studio\18\Community\VC\Tools\MSVC\14.50.35717\include\vector:2499 in std::_Vb_reference<std::_Wrap_alloc<std::allocator<unsigned int> > >::operator bool
Shadow bytes around the buggy address:
  0x1201ed2a3c80: fa fa fd fa fa fa 00 00 fa fa 00 fa fa fa 00 00
  0x1201ed2a3d00: fa fa 00 00 fa fa 00 00 fa fa 00 00 fa fa 00 00
  0x1201ed2a3d80: fa fa fd fd fa fa 00 00 fa fa fd fd fa fa 00 fa
  0x1201ed2a3e00: fa fa 00 00 fa fa 00 00 fa fa 00 00 fa fa 00 00
  0x1201ed2a3e80: fa fa 00 00 fa fa 00 fa fa fa 00 00 fa fa 00 00
=>0x1201ed2a3f00: fa fa fd fa fa fa fd fa fa fa 00 00 fa fa 04[fa]
  0x1201ed2a3f80: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x1201ed2a4000: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x1201ed2a4080: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x1201ed2a4100: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x1201ed2a4180: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
Shadow byte legend (one shadow byte represents 8 application bytes):
  Addressable:           00
  Partially addressable: 01 02 03 04 05 06 07
  Heap left redzone:       fa
  Freed heap region:       fd
  Stack left redzone:      f1
  Stack mid redzone:       f2
  Stack right redzone:     f3
  Stack after return:      f5
  Stack use after scope:   f8
  Global redzone:          f9
  Global init order:       f6
  Poisoned by user:        f7
  Container overflow:      fc
  Array cookie:            ac
  Intra object redzone:    bb
  ASan internal:           fe
  Left alloca redzone:     ca
  Right alloca redzone:    cb
==25448==ABORTING

which is a bit better since I have a source and a line to point me fault.

Still sad that it does't catch:

QTimer t;
    t.setInterval(0);
    t.setSingleShot(true);
    {
        QByteArray ba = QByteArrayLiteral("Test byte array literal");
        t.connect(&t, &QTimer::timeout, &t, [d=ba.data()](){
            qDebug() << d;
        });
    }
    t.start();

and

int *p = new int[2];
    p[100] = 42; // ASan doit détecter ça
    delete[] p;

KH-219Design

Again, I'm unfamiliar with MSVC range of sanitizer possibilities, but...

Is UBSan available? Using both ASan and UBSan (if possible) would (of course) cover more bugs than just one sanitizer in isolation.

(There is also LeakSan). Example flags:

-fsanitize=address,undefined,leak

Many, many years ago I also used windows-specific tools (DCRT, debug C runtime; and something called gflags.exe), and those tools worked well on MSVC to detect out-of-bounds writes and other memory abuses/errors. I'm not sure what the current windows state-of-the-art memory tooling is named and what form it takes.
