Qt Designer: QGroupBox not showing its entire title

kitebuggy

)Hello

I designed a buttonBox in a GroupBox. The title isn't showed entirely in the box as seen on the imagage:
alt text
The code for this image is:
test.ui

I can enlarge the QVerticalLayout and the QGroupBox as I want, nothing changes.
I use QT Designer 6.10.1 on Manjaro Linux.

What am I doing wrong?

Thank you.

Christian Ehrlicher

I don't have a problem as soon as I apply a proper layout on the mainwindow

kitebuggy

Can you please write exactly what you did?
Thank you.

Christian Ehrlicher

See https://doc.qt.io/qt-6/designer-layouts.html on how to work with layouts in designer mode.

kitebuggy

Excuse me, but I don't understand. I now applied vertical Layout on the GroupBox and the title is broken at the end as soon as I switch its alignement onto flat. The size of the title isn't adjusting to the new font used. I can adjust the size of the GroupBox, but the title size stays unchanged ( Die Box mit dem Titel ändert seine Größe nicht.)

Christian Ehrlicher

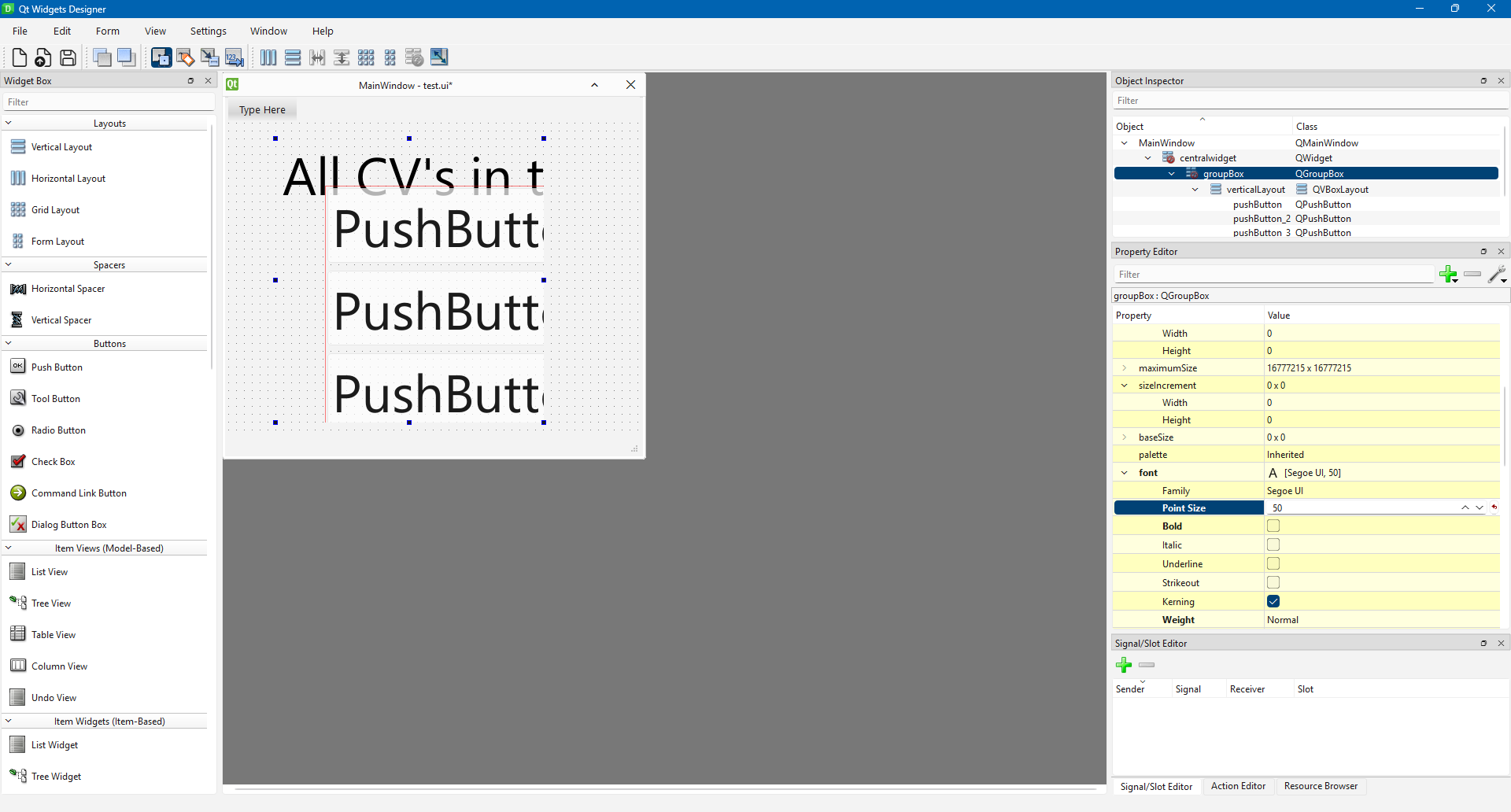

Without a layout on the mainwindow:

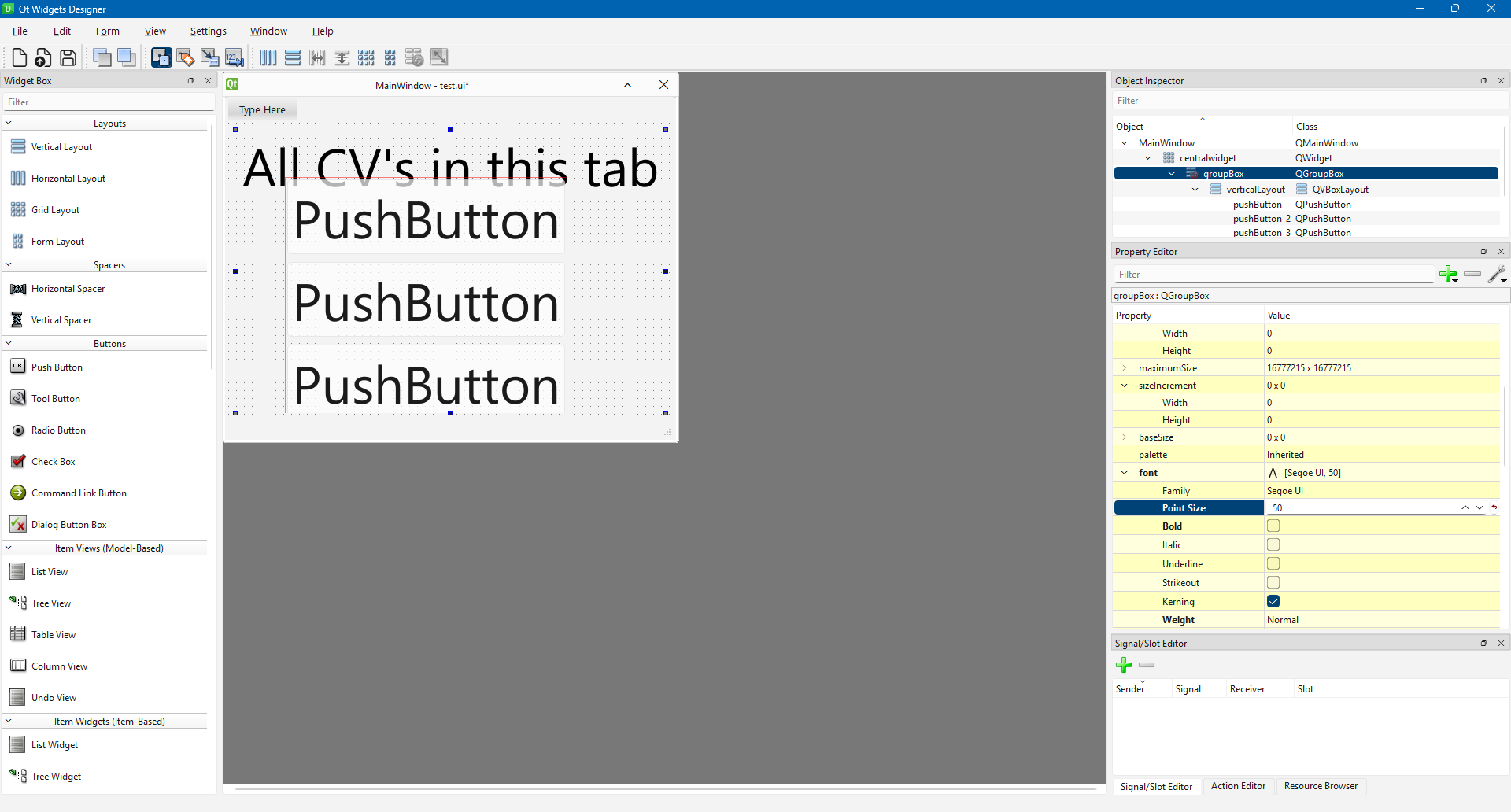

With layout on mainwindow:

JonB

@kitebuggy
I saw your code last night and that it was missing a layout on the central widget of the main window but wasn't sure whether that would produce the behaviour you see.

So that you know: look at @Christian-Ehrlicher's two screenshots. The first one is your original code. Look at the Object Explorer pane at the right: notice that centralWidget has a "red no-entry sign" on it. Whenever you see that in Designer it indicates you are missing a layout on that widget. See how in the second screenshot that has disappeared. So look out for that when designing.

(Having said this: I'm not quite sure what is going on with your QGroupBox widget: that still shows a "red no-entry" even though you have added an explicit QVBoxLayout on it. I tend not to add explicit layout objects unless I really need them, you can also set a layout on a widget by right-clicking on it and selecting Layout > (once it has at least one child widget, it's disabled before that) and I do that whenever possible. i am still not sure whether that way or adding an explicit layout as a child result in the same code/behaviour....)
